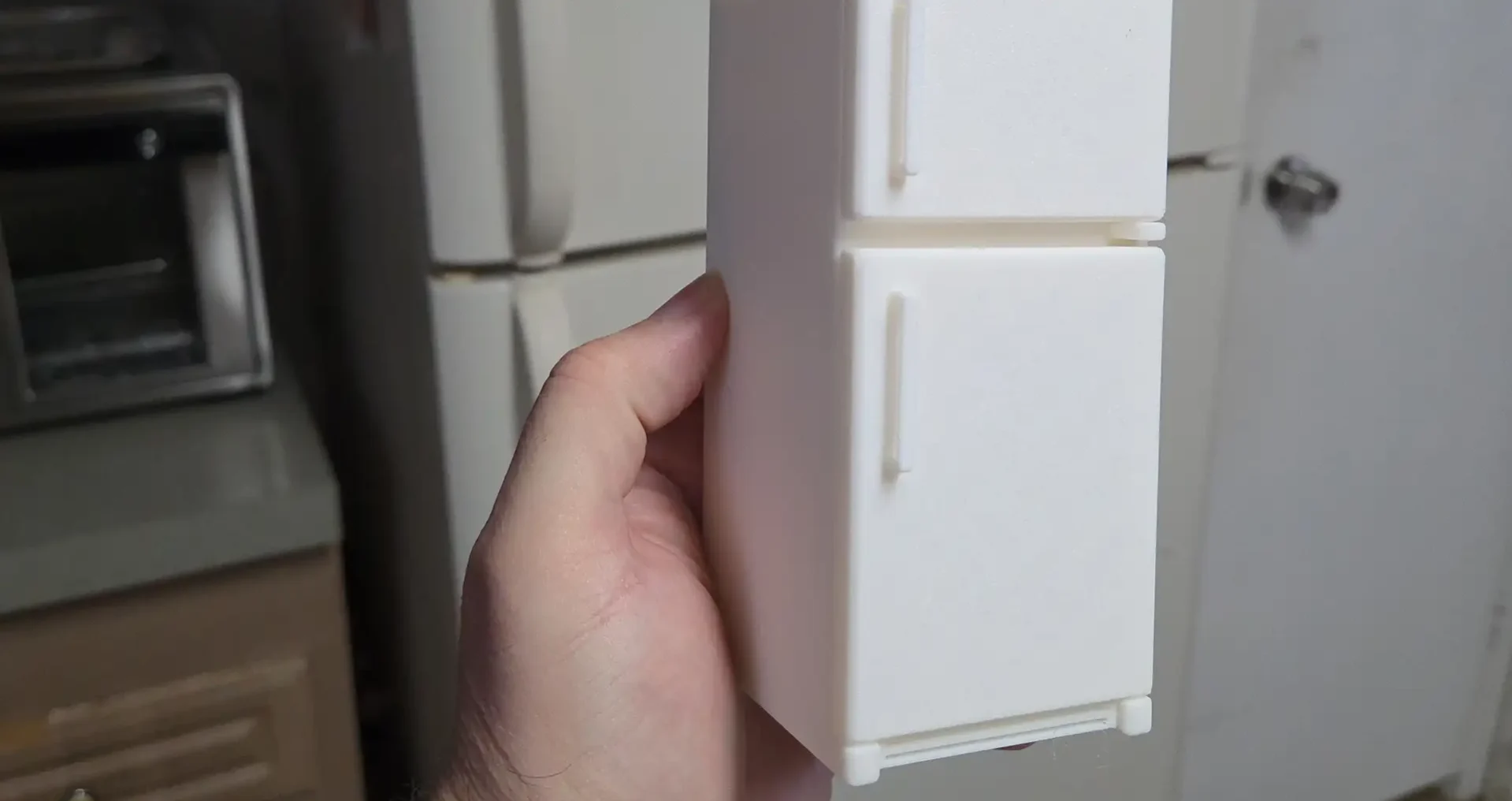

A new model dropped in the OreKo catalog today: the Top Freezer Refrigerator Dollhouse 1:12 Scale STL. It is a classic top-freezer fridge designed specifically for 1:12 scale dollhouse kitchens, dioramas, room boxes, and miniature photography. Both doors open and close using standard 1.75mm filament as the hinge pin, the shelves and drawers are separate removable pieces, and the whole model prints without a single support structure.
It is available now on Cults3D.
Why a Top Freezer? Why Not Another Side-by-Side?
The side-by-side refrigerator has been one of OreKo’s most popular models. It suits modern kitchens, contemporary room boxes, and upscale miniature scenes well. But a lot of miniature builds aren’t trying to be contemporary. They’re trying to be real.
A cozy apartment kitchen. A family home from the 1980s or 1990s. An everyday space that feels lived-in. Those scenes don’t have side-by-sides. They have the classic top freezer fridge that most of us grew up with, the one that is still in millions of homes right now.
That gap in the catalog is what this model fills. The top freezer design is more versatile across different time periods and room styles than any modern appliance, and it was missing from the OreKo lineup until today.
What’s in the Download
The download includes 17 total files: STL files for every individual part, plus 3MF files pre-configured for five Bambu Lab printer models (A1 Mini, A1, H2D, X1C, and X2D). Every part is separated for cleaner printing and easier painting before assembly.
Parts included:
- Main refrigerator body
- Freezer door
- Refrigerator door
- 5 door shelves
- Bottom drawer
- Top drawer
- 2 handles
Body dimensions: 63.50mm wide × 142.61mm tall × 67.73mm deep. Add approximately 6.35mm of depth once the handles are installed.
The Hinge System: No Hardware Required
The working doors are one of the defining features of this model. Both the freezer door and the refrigerator door open and close on a hinge system built entirely from a short piece of standard 1.75mm filament. No metal rods, no screws, no specialty hardware of any kind. The filament you already have in your printer is the only thing you need.
This is the same approach used on the miniature windows with working shutters, where hinge pins and functional moving parts are built into the design without requiring hardware sourcing. It keeps the build self-contained and accessible for any maker.
Print Settings at a Glance
| Setting | Recommendation |
|---|---|
| Printer type | FDM |
| Filament | PLA (any color) |
| Nozzle | 0.4mm |
| Layer height | 0.20mm standard / 0.16mm or 0.12mm for finer detail |
| Supports | None required |
| Infill | 15% for the main body / 100% for small detail parts |
| Assembly | Required (hinge pin: standard 1.75mm filament) |
The 3MF files for Bambu Lab printers open with these settings pre-configured. The STL files work on any standard FDM printer. Bambu Studio plate arrangements are included for the A1 Mini, A1, H2D, X1C, and X2D.
Printing and Painting Tips
White matte PLA is the natural starting point for a fridge. Print the main body in white and the shelves and drawers in the same white for a clean appliance appearance, then seal with a satin varnish to replicate the slight sheen of real appliance surfaces.
For a vintage or retro kitchen look, print in cream, pale yellow, or avocado green and weather very lightly with thin grey washes in recesses. These color choices immediately date the kitchen to a specific era in the most satisfying way.
The separated parts make painting genuinely easier: the body, both doors, handles, shelves, and drawers can all be painted and detailed independently before final assembly. No masking, no awkward angles. See the full painting sequence at the dollhouse furniture painting guide.
Where It Fits in a 1:12 Kitchen Build
The top freezer fridge anchors a kitchen scene the same way a range or sink does. It’s a visual centerpiece that tells the viewer immediately what space they’re looking at. At 63.50mm wide and 142.61mm tall, it fits proportionally in any standard 1:12 scale kitchen layout without dominating the space.
It works well alongside other OreKo architectural pieces. The miniature windows with working shutters and the window with shutters and planter provide the architectural framing for a room. The balcony railing set handles exterior spaces. And the side-by-side fridge and this top freezer model together give you two distinct kitchen eras to choose from depending on the scene you’re building.
More on building a full 1:12 room with 3D printed parts is in the complete 1:12 room build guide.
Frequently Asked Questions
Is this model truly 1:12 scale?
Yes. The main body is 63.50mm wide × 142.61mm tall × 67.73mm deep, which matches the proportions of a real full-size top freezer refrigerator at 1:12 scale. It fits standard dollhouse kitchen layouts without any adjustment.
Do both doors actually open?
Yes. Both the top freezer door and the lower refrigerator door are functional, using short pieces of standard 1.75mm filament as hinge pins. No additional hardware is required.
Can I print this without supports?
Yes. Every STL file is oriented for support-free FDM printing. The 3MF files already have the correct orientation set. Do not add supports unless a specific part instructs you to.
What filament is recommended?
PLA in any color. White PLA prints a clean appliance surface directly off the printer. Matte white PLA takes primer and paint well if you plan to detail or weather the piece. See the best filament for dollhouse miniatures guide for full material recommendations.
How does the hinge work?
Each door slides into the hinge channel on the main body. A short piece of 1.75mm filament is then pushed through the hinge opening to act as the pivot pin. The door swings freely on the filament pin without needing any metal hardware. The same system is used on the miniature windows with working shutters.
