Miniature Window with Shutters & Planter

Multiple Versions — 45 Min Print — Scalable — No Supports — 1:12 Scale Version Included — STL Files

⭐ 3,800+ Views  •  23 Likes  •  40 Purchases & Downloads on Cults3D

OreKo miniature window with shutters and planter 3D printed showing assembled view with all elements

About This Model

The OreKo Miniature Window with Shutters & Planter is one of the most charming detail pieces in the dollhouse and miniature catalog. A compact 46 x 46mm window frame with working shutters and an integrated flower planter box beneath the sill — the kind of architectural detail that elevates a dollhouse exterior from functional to genuinely beautiful.

With 3,800+ views and 40 purchases on Cults3D, this model consistently attracts dollhouse builders and diorama makers looking for that one piece that ties a facade together. The planter is designed as part of the window unit, making it a single cohesive piece rather than two separate components to align and glue.

Multiple versions are included to suit different printers and build goals: a flat no-support version for easy printing, a separated pieces version for multi-color or multi-material builds, a thicker wall variant, a wider planter version, and a dedicated 1:12 scale version for standard dollhouse sizing.

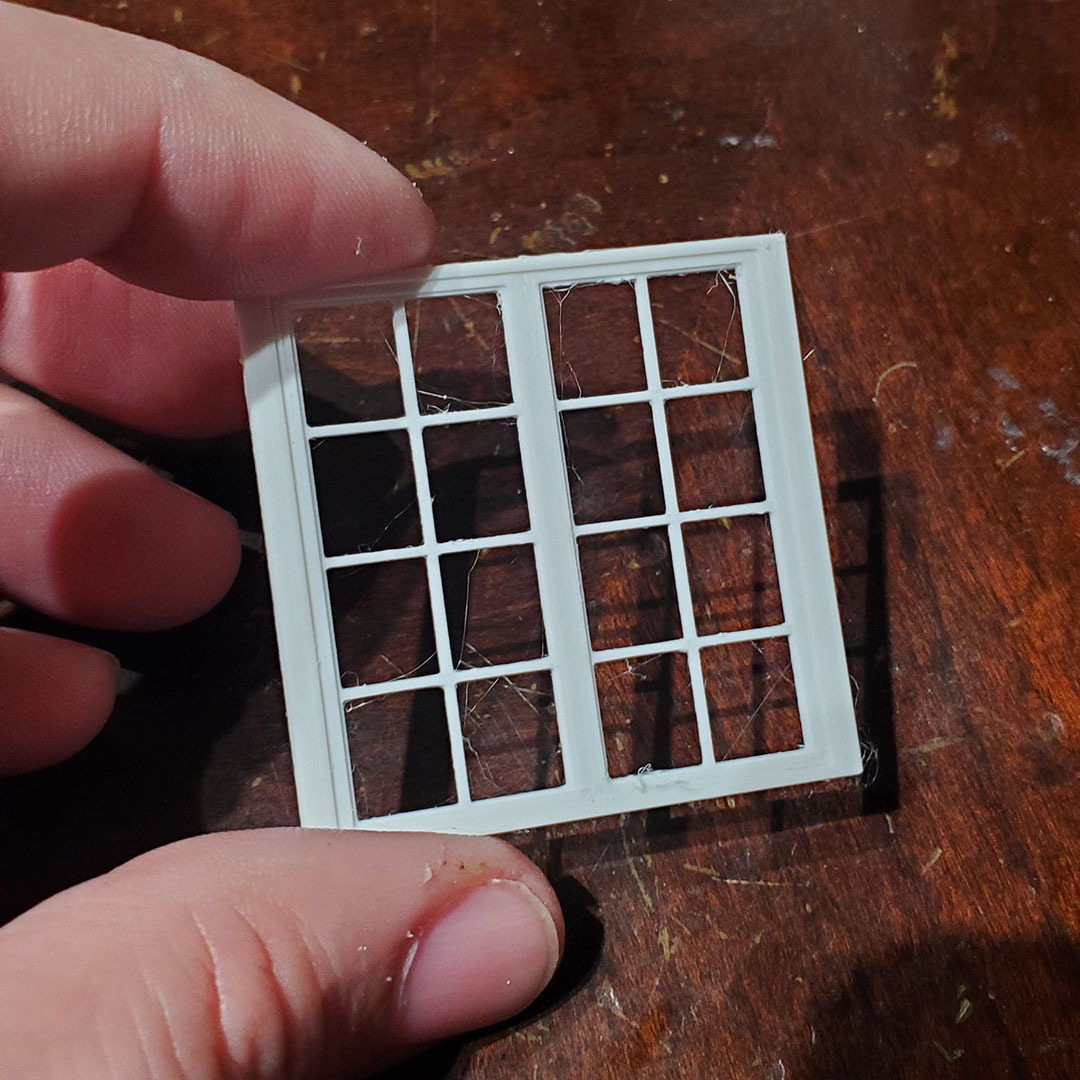

OreKo miniature window with planter box 3D printed in white PLA showing shutter detail close up

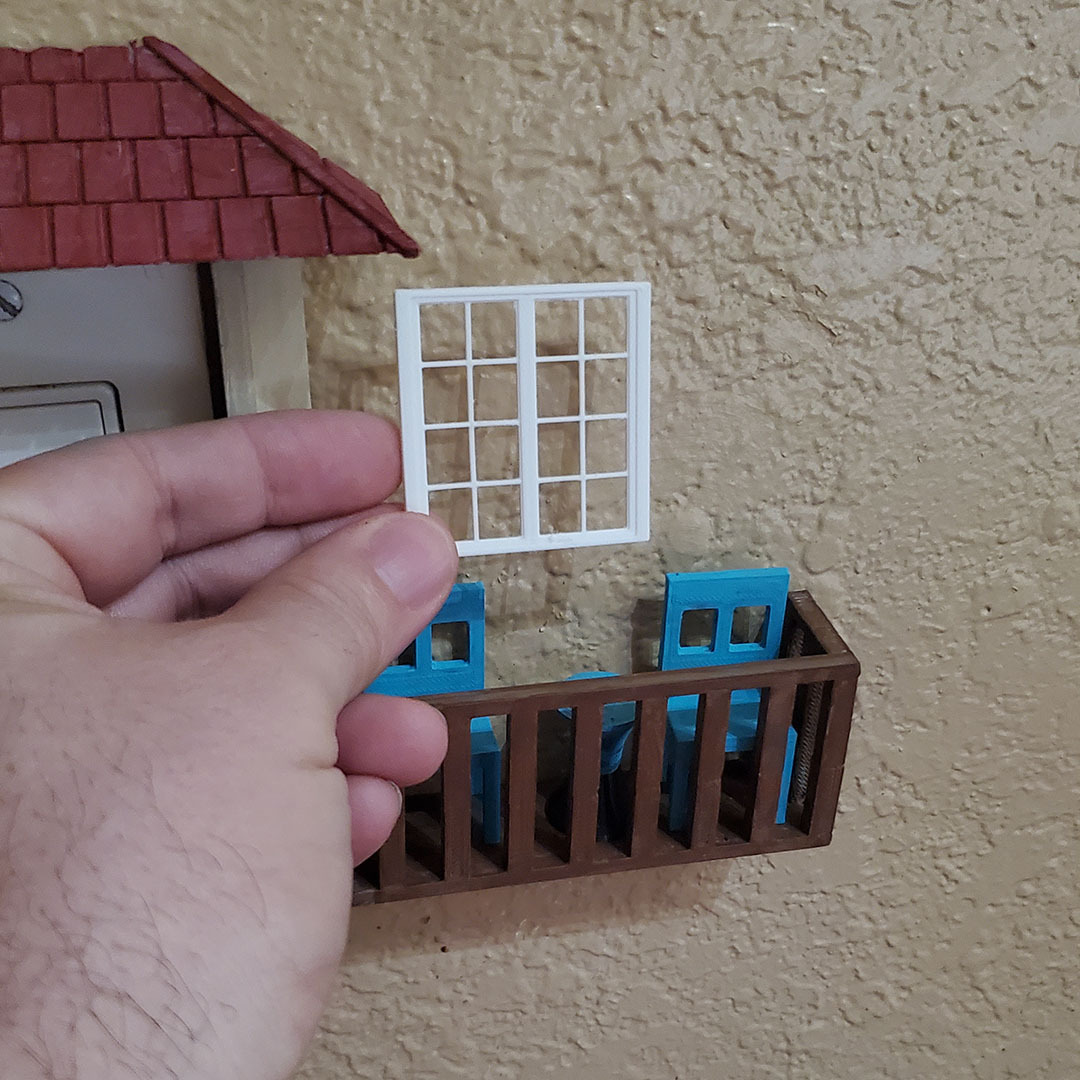

OreKo miniature window with shutters and flower planter 3D printed showing scale comparison

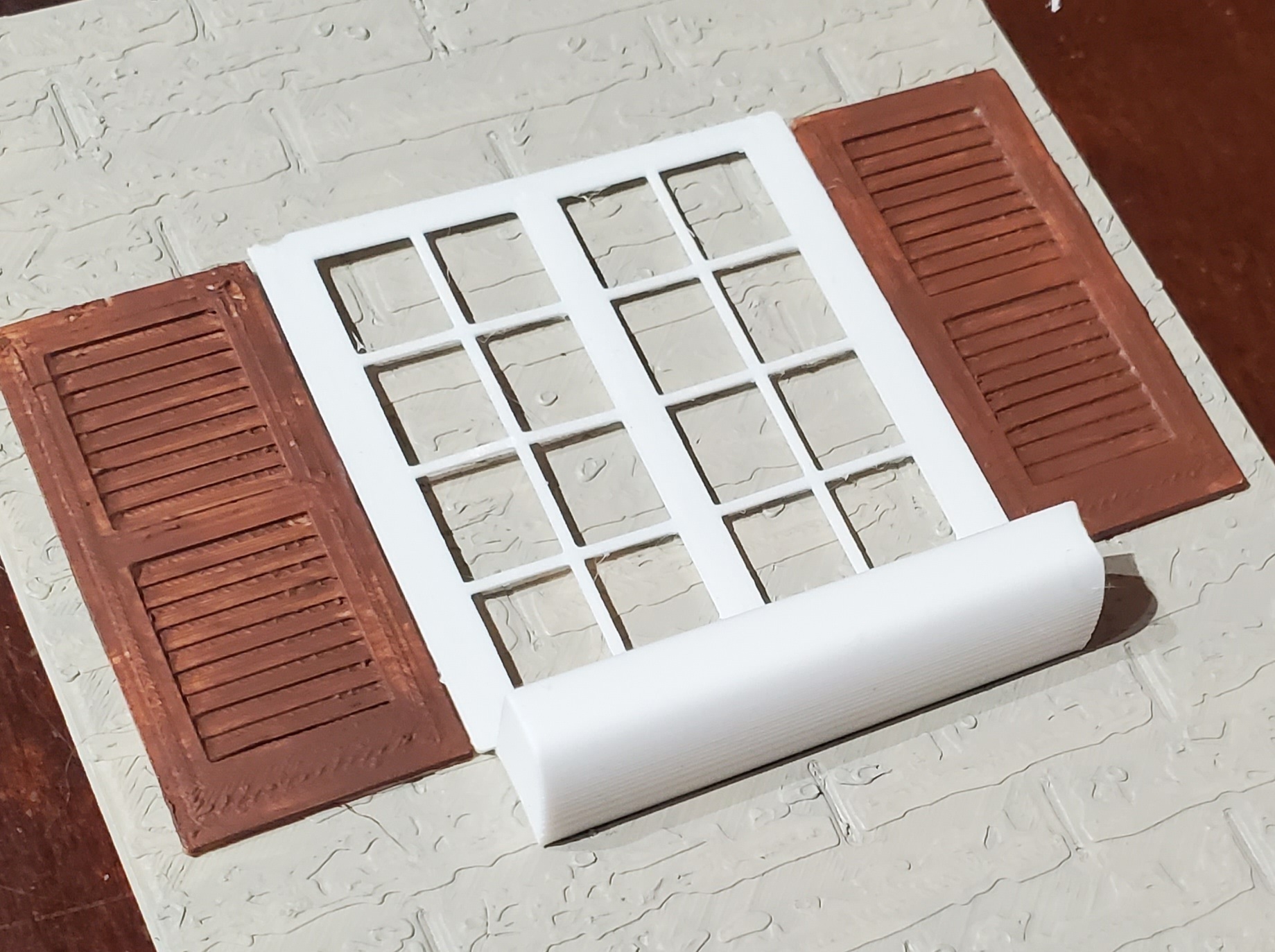

OreKo 3D printed miniature window planter showing wider planter box version with shutters open

What You Get

  • Full assembly view file showing all elements together
  • Flat no-support version (recommended at 0.12mm or finer) for assembled printing
  • Separated pieces version for easy printing on any standard printer at 0.20mm
  • All individual pieces separated for multi-color or multi-material builds
  • Wider/larger planter box version
  • Thicker version (2.5mm per wall) per community request
  • 1:12 scale version for standard dollhouse sizing
  • Two shutter styles: see-through (needs supports) and flat no-support version

Key Features

  • 3,800+ views and 40 purchases — one of OreKo’s most popular miniature pieces
  • 46 x 46mm frame — perfect for small room miniatures
  • Integrated planter box beneath the window sill — cohesive single-unit design
  • Multiple versions for every printer type and scale
  • 1:12 scale version included for standard dollhouse compatibility
  • Scalable in your slicer for any other scale
  • Only ~45 minutes average print time
  • 100% infill throughout for solid, durable miniature pieces

All Versions Explained

Multiple files are included so you can choose the right approach for your printer and build.

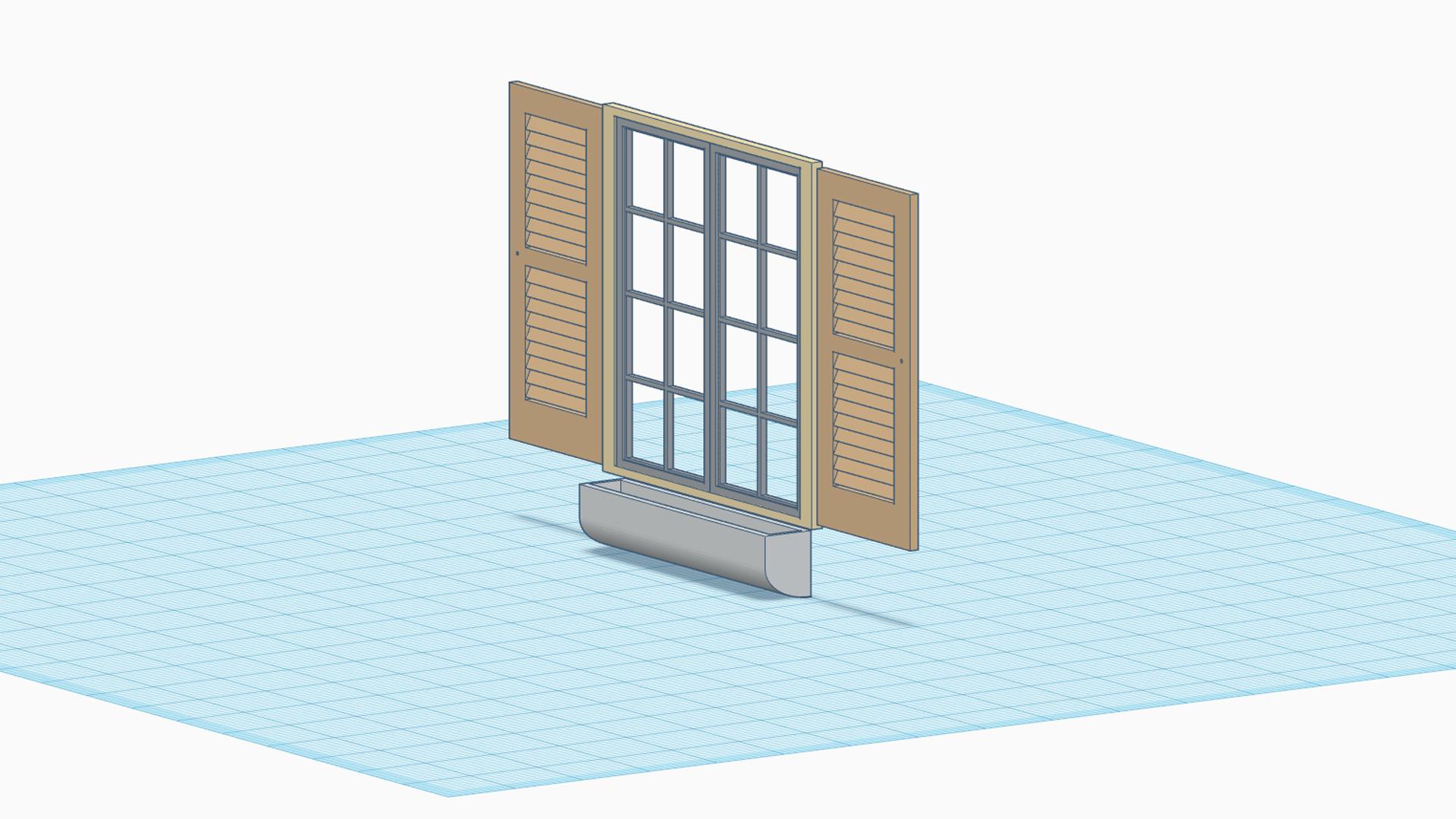

OreKo miniature window with shutters and planter 3D render view 1 showing complete assembly design

Choosing Your Version

Flat no-support assembled version (recommended): The primary file. Designed to print flat with no supports. Best results at 0.12mm or finer. Shutters, frame, and planter print together as one clean unit.

Separated pieces version: Every element of the window is a separate file. Print each piece individually, then assemble. This is the easiest version for any printer at standard 0.20mm settings. Also ideal for printing shutters and frame in different colors.

Thicker version (window-set-thicker-version): Walls are 2.5mm thick instead of the standard thickness. Added per community request for builders who want more structural rigidity or are scaling up significantly.

Wider planter box version: The planter box is larger and wider. Better proportioned when the window is scaled up or when you want a more prominent planter display.

1:12 scale version (window-set-1-12-version): Specifically sized for standard 1:12 dollhouse scale. Use this version if you are building or furnishing a standard 1:12 dollhouse. The original file is designed for a smaller room miniature — this version matches standard dollhouse window proportions.

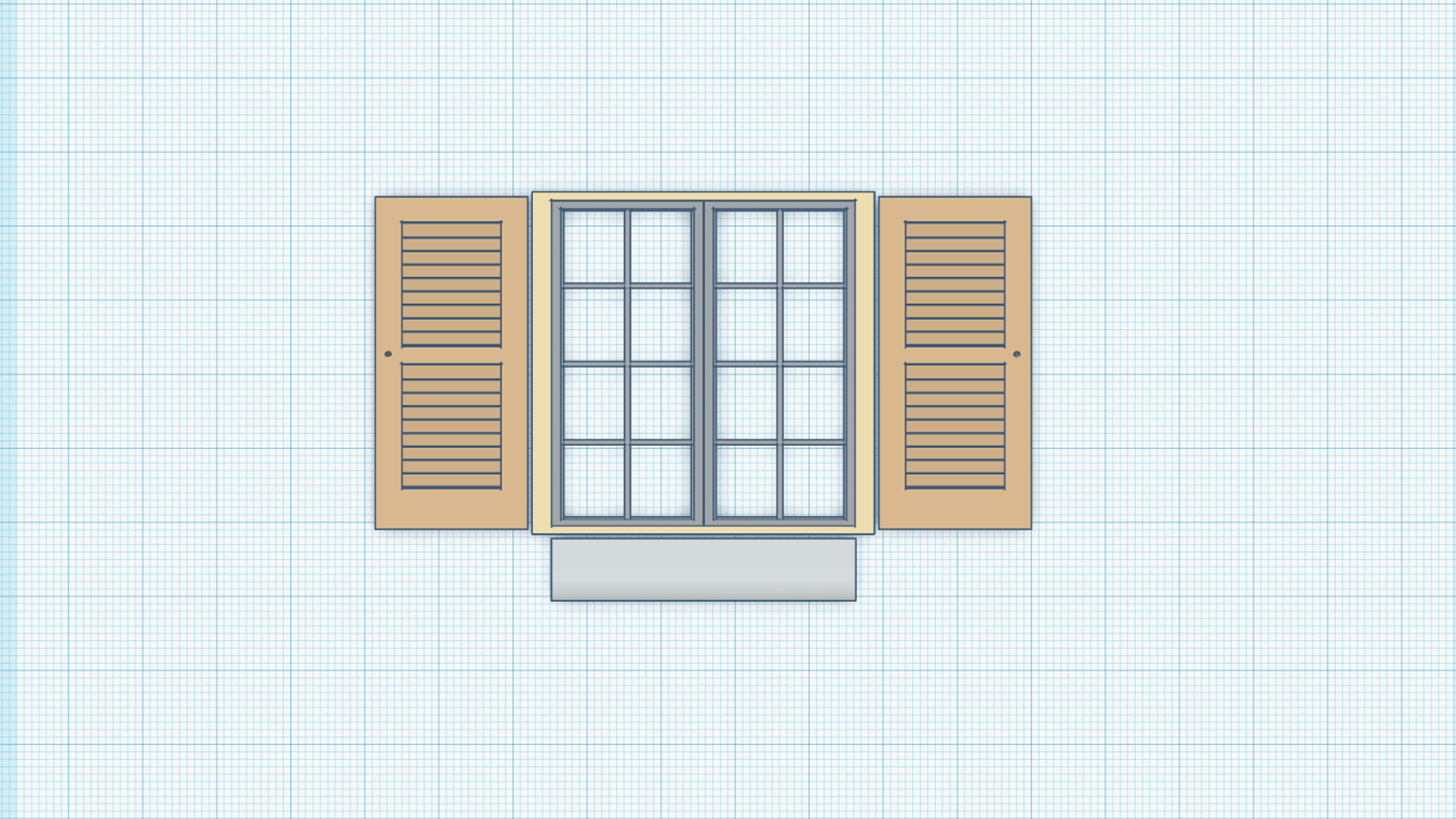

OreKo miniature window planter render view 2 showing shutter and planter box design profile

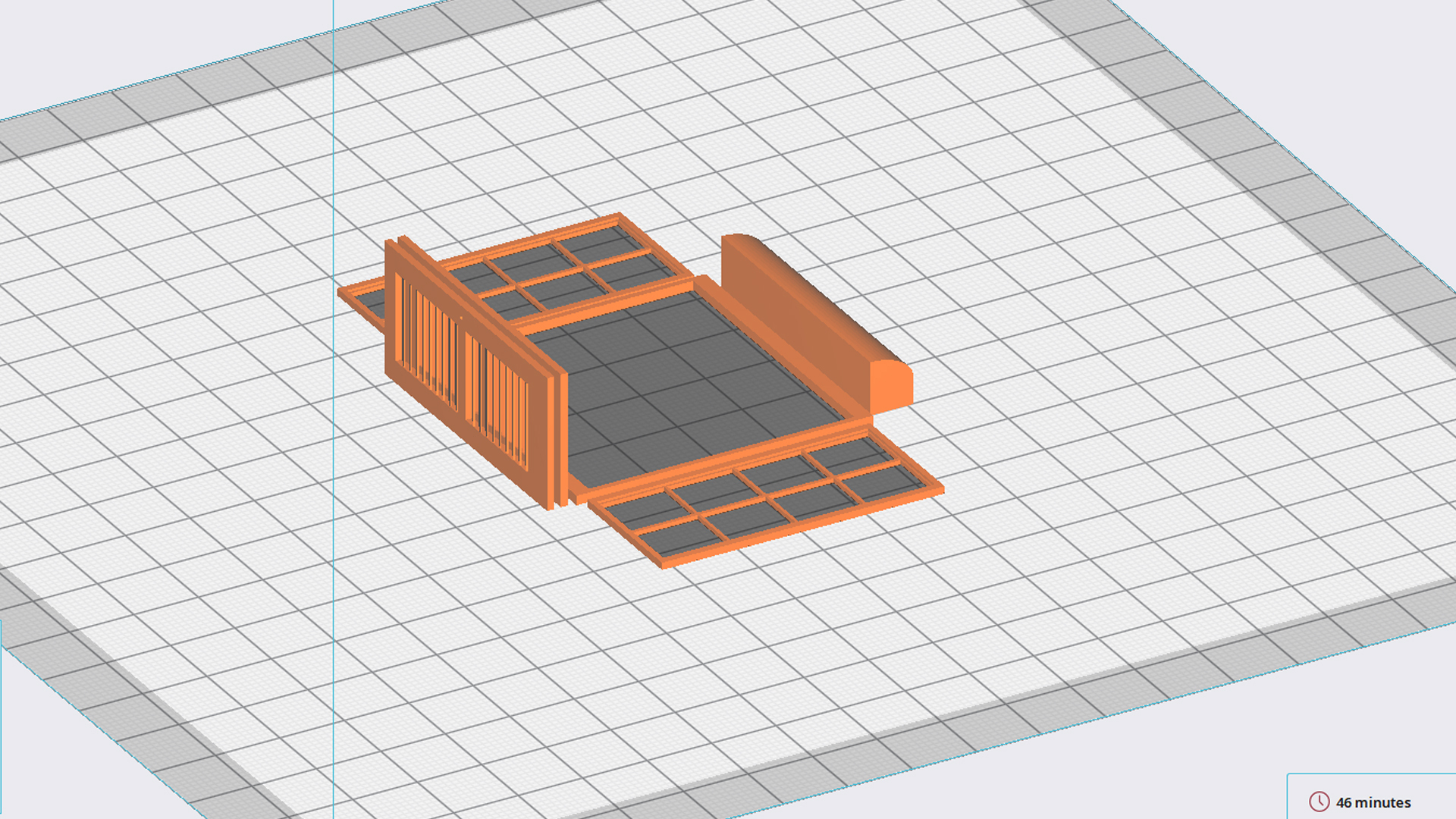

OreKo miniature window with shutters and planter render view 3 showing 1:12 scale version proportions

Model Dimensions

Measurement Standard Version 1:12 Scale Version Notes
Frame Width ~46mm Scaled for 1:12 Perfect for small room miniatures
Frame Height ~46mm Scaled for 1:12 Square format window
Standard Wall Thickness Standard Standard Thicker 2.5mm version also available
Average Print Time ~45 minutes ~45 minutes At standard settings
Scale Small room miniature 1:12 standard dollhouse Also scalable in slicer for any scale

Print Settings

🎯 Nozzle

0.4mm
Standard on all versions.

📏 Layer Height

0.08mm to 0.20mm
0.08mm for sharpest shutter and planter detail. 0.12mm or 0.16mm for optimal. 0.20mm works at standard settings.

🛠 Infill

100% throughout
100% infill recommended on all versions for solid detail pieces. The model is small enough that 100% infill adds minimal time.

⚡ Supports

None on most versions
Flat and separated versions need no supports. The see-through shutter version requires supports.

Settings by Profile

Setting Best Optimal Strong Standard
Nozzle 0.4mm 0.4mm 0.4mm 0.4mm
Layer Height 0.08mm 0.16mm or 0.12mm 0.2mm 0.2mm
First Layer 0.16mm 0.2mm 0.2mm 0.2mm
Supports None None None None
Wall Lines 2 2 6 2
Top / Bottom Layers 9 top / 7 bottom 9 top / 7 bottom 5 top / 3 bottom 5 top / 3 bottom
Infill 100% 100% 100% 100%
Print Time ~60 min ~45-50 min ~45 min ~40 min

Painting & Finishing for Maximum Impact

At 46mm the window is small, but the right finish makes it look exceptional at dollhouse scale. Because every surface is visible and close-up, the finishing approach matters more here than on larger pieces.

Print frame and shutters in separate colors using the separated pieces version. White or cream frame with dark green, navy, or terracotta shutters is the classic combination. The planter box looks best in a terracotta or earthy brown tone.

Texture the planter with paint. A dry-brush of light tan over a darker base color on the planter box creates a convincing ceramic or stone texture at this scale.

Add miniature plants. A tiny tuft of green static grass, a dried sprig of baby’s breath, or small punched paper flower shapes pressed into the planter box with a dot of glue complete the window unit into a scene.

Acetate glazing. Cut a 38 x 38mm piece of clear acetate or transparency film and press it behind the window opening from inside the frame. The glass effect is immediately convincing.

Why This Pairs Perfectly with the Miniature Windows Set

The Miniature Window with Shutters & Planter works as a standalone piece or as a complement to the Miniature Windows with Working Shutters Set.

The working shutters set is the larger 1:6 scale window with three design variants and the live-action filament pin hinge. This planter window is the smaller, self-contained accent piece — perfect for a corner room, a half-wall exterior, or anywhere a compact window with character works better than a full-size one.

Used together:

  • Working shutters set as the main facade windows on the upper floors
  • Planter window as accent pieces on lower floors, cottage-style additions, or garden walls
  • Both scale together — print the planter window at 200% to match the 1:6 working shutters set

For more on printing miniatures at the right scale, see our miniature layer height guide.

Compatible Printers

Tiny footprint. Prints on almost any FDM printer. 0.12mm or finer strongly recommended for shutter and planter detail.

Bambu X1C / P1S
Excellent at 0.08mm

Bambu A1 / A1 Mini
Excellent at 0.12mm

Prusa MK4 / MINI+
Excellent at 0.12mm

Creality Ender 3
Good with tuning at 0.12mm

Any FDM Printer
Separated pieces version works on any standard FDM printer

Get the Miniature Window with Shutters & Planter on Cults3D

3,800+ views. 40 purchases. Multiple versions for every scale and printer. Designed and tested by OreKo in South Florida.
