Refrigerator Side-by-Side Dollhouse Fridge
1/12 (1:12) Scale & 1:16 Scale — Modern Design — No Supports Needed — STL & 3MF Files Included
Watch It in Action
About This Model
The Nevada Side-by-Side Dollhouse Refrigerator is a highly detailed 1:12 scale miniature designed for dollhouse builders, diorama creators, and miniature collectors. This is a full modern side-by-side refrigerator with opening doors, printed completely without supports.
The model comes in two scale options: 1:12 (standard dollhouse scale) and 1:16, giving you flexibility for different build sizes. All parts are separated for easy assembly with minimal glue on a few key areas.
Two hinge options are included: use simple flower wire as a hinge pin, or use the included nip version that requires no hinge hardware at all. Everything you need is in the download.
What You Get
- STL files for all 3 versions of the refrigerator
- 1:12 scale and 1:16 scale included
- Nip version (no hinge hardware needed) and wire hinge version
- Print-ready 3MF file for Bambu Studio, pre-configured for the Bambu X1C
- 3MF also compatible with P1S, A1, A1 Mini, and H2
- All parts separated and oriented for optimal printing
- PRINT IN PLACE design on select components
Key Features
- Modern side-by-side refrigerator design

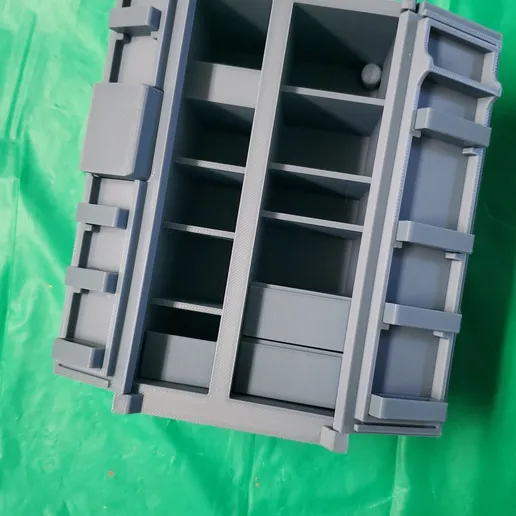

- Opening doors on both freezer and refrigerator sides
- Detailed exterior with realistic panel lines and handles
- No supports required on any part when printed in recommended orientation
- Easy assembly with light glue on a few joining areas
- Scalable — works at 1:12 and 1:16
- Sample prints produced in standard 0.20mm white PLA

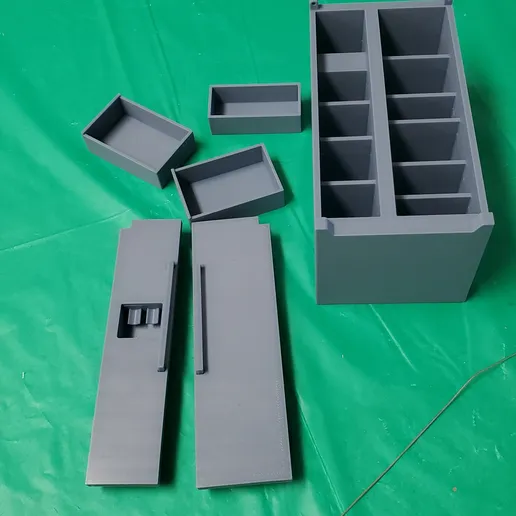

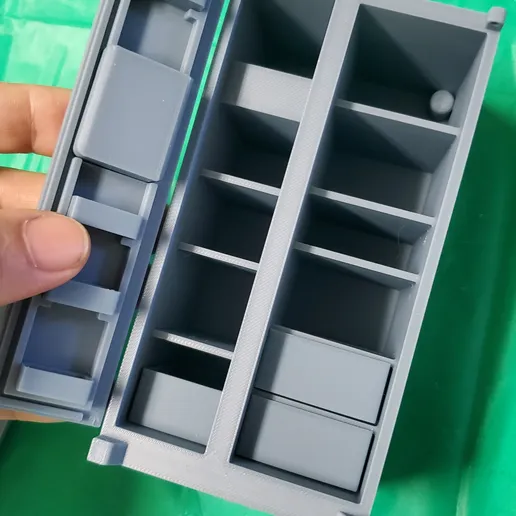

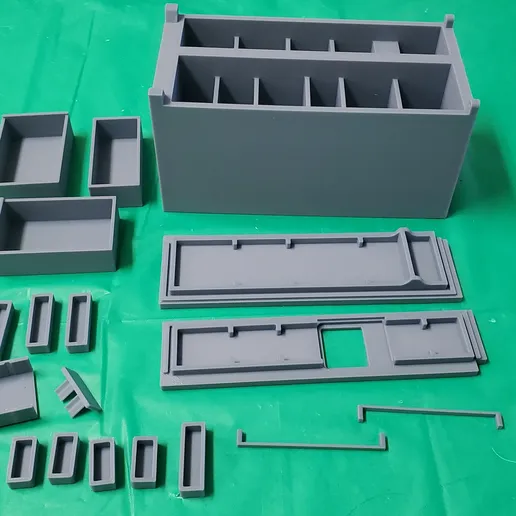

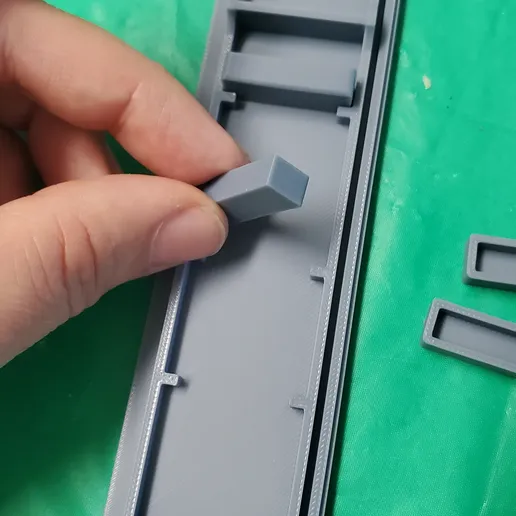

See It Printed
Print Settings
🎯 Nozzle
0.4mm
Standard nozzle diameter. No special hardware needed.
📏 Layer Height
0.20mm or 0.16mm
Standard 0.20mm works well. For sharper detail, drop to 0.16mm or even 0.12mm on the finer pieces.
🛠 Infill
15% standard / 100% small parts
Large body pieces print fine at 15% infill. Print smaller detail parts at 100% infill using a lines pattern for maximum strength and detail.
⚡ Supports
None required
All STL files are oriented for support-free printing. The 3MF Bambu file has rotation already set. Do not add supports unless specifically instructed.
Optimal Settings at a Glance
| Nozzle Size | 0.4mm |
| Layer Height | 0.20mm (standard) / 0.16mm or 0.12mm (detail) |
| First Layer Height | 0.2mm |
| Supports | None |
| Wall Lines | 2 |
| Top / Bottom Layers | 5 top / 5 bottom |
| Infill Density | 15% (large parts) / 100% (small detail parts) |
| Recommended Filament | PLA (any color) |
Assembly Tips
This model is designed for easy assembly. Parts are separated and pre-oriented so you can print each piece individually and put them together without any complicated geometry.
Hinge options: The wire hinge version uses a short piece of 1.75mm filament cut to length and inserted as a hinge pin. It is a perfect interference fit. The nip version snaps together without any additional hardware at all.
Glue: A small amount of super glue or PLA-compatible adhesive on the main body joins is all you need. Keep glue away from the hinge areas so the doors remain free to open and close.
Bambu users: Open the included 3MF file directly in Bambu Studio. Everything is pre-plated and oriented. Select your filament and hit slice.
About 1:12 Scale
The 1:12 scale (also written as 1/12) is the most widely used standard for dollhouses. In this scale, one inch represents one foot of real-world size. A standard full-size refrigerator stands about 5 to 6 feet tall, so at 1:12 scale it prints roughly 5 to 6 inches tall.
This scale is compatible with the vast majority of commercially available 1:12 dollhouse furniture, figures, and accessories. If you are building or decorating a dollhouse, 1:12 is almost certainly the scale you want.
The 1:16 scale version included in this download is slightly smaller and works well for more compact builds or scenes where a smaller appliance better fits the overall composition.
Compatible Printers
The included 3MF file is pre-configured for Bambu Lab printers. The STL files print on any FDM printer.
Bambu X1C
3MF pre-configured
Bambu P1S
STL / 3MF compatible
Bambu A1 / A1 Mini
STL / 3MF compatible
Prusa MK4 / MINI
STL compatible
Any FDM Printer
All STL files work on any standard FDM printer
Ready to Print This Refrigerator?
Download the STL and 3MF files on Cults3D. Designed and tested by OreKo in South Florida.
