The H Series is Bambu Lab’s professional tier — three machines built around the same large enclosed chassis, all capable of engineering materials at scale. H2S, H2D, and H2C share the same heated chamber, the same 350°C hotend range, and the same industrial build quality. What separates them is how they handle multiple materials.
Every H Series printer is built around the same foundation. Before picking between the H2S, H2D, and H2C, understand what you’re getting regardless of model:
| Specification | H2S | H2D | H2C |
|---|---|---|---|
| Build Volume | 340 × 320 × 340mm | 350 × 320 × 325mm * | 330 × 320 × 325mm |
| Extruder | Single DynaSense servo | Dual IDEX direct drive | Vortek 8-hotend tool-changer |
| Max Print Speed | 1,000mm/s | 600mm/s | 600mm/s |
| Acceleration | 20,000mm/s² | 20,000mm/s² | 20,000mm/s² |
| Max Nozzle Temp | 350°C | 350°C | 350°C |
| Chamber Heating | 65°C active | 65°C active | 65°C active |
| Motion Accuracy | <50μm (Vision Encoder) | <50μm (Vision Encoder) | <50μm (Vision Encoder) |
| Multi-Material | AMS purge tower | IDEX simultaneous — near-zero waste | Tool-changer — near-zero waste |
| Laser Module | 10W optional | 10W or 40W optional | 10W or 40W optional |
| Starts From | $1,249+ | $1,899+ | $2,399+ |
* H2D full build volume with single nozzle active: 325 × 320 × 325mm due to IDEX offset.
The H2S delivers the H2D’s chassis, chamber, and speed in a single-nozzle configuration. If you don’t need simultaneous dual-material printing but want the largest Bambu build volume and the ability to print serious engineering materials, the H2S is the most cost-efficient path in. It’s also the fastest printer in the H Series — 1,000mm/s vs the H2D’s 600mm/s cap.
| Build Volume | 340 × 320 × 340mm |
| Architecture | Enclosed CoreXY |
| Extruder | Single DynaSense PMSM servo |
| Max Print Speed | 1,000mm/s |
| Acceleration | 20,000mm/s² |
| Max Nozzle Temp | 350°C |
| Chamber Heating | 65°C active |
| Layer Resolution | 5μm optical measurement |
| Motion Accuracy | <50μm with Vision Encoder (sold separately) |
| Cameras | Bird’s-eye (3264×2448, 15fps) + live view toolhead |
| Sensors | 23 sensors — clog, filament, fire, vibration |
| Multi-color | AMS 2 Pro compatible (purge tower workflow) |
| Laser Module | 10W optional — cuts up to 5mm plywood/acrylic |
| Other Modules | Blade cutting, pen plotting |
| Connectivity | Wi-Fi, LAN |
| Upgrade Path | Vortek Upgrade Kit available ($899) — adds H2C tool-changer |
Engineering teams and serious makers who need H Series build volume and material range without the cost of dual nozzles. Large single-material or AMS multi-color prints. Anyone planning to upgrade to Vortek later.
Makers who need simultaneous dual-material with no waste — the H2D handles that. High-volume multi-color production work — get the H2C instead.

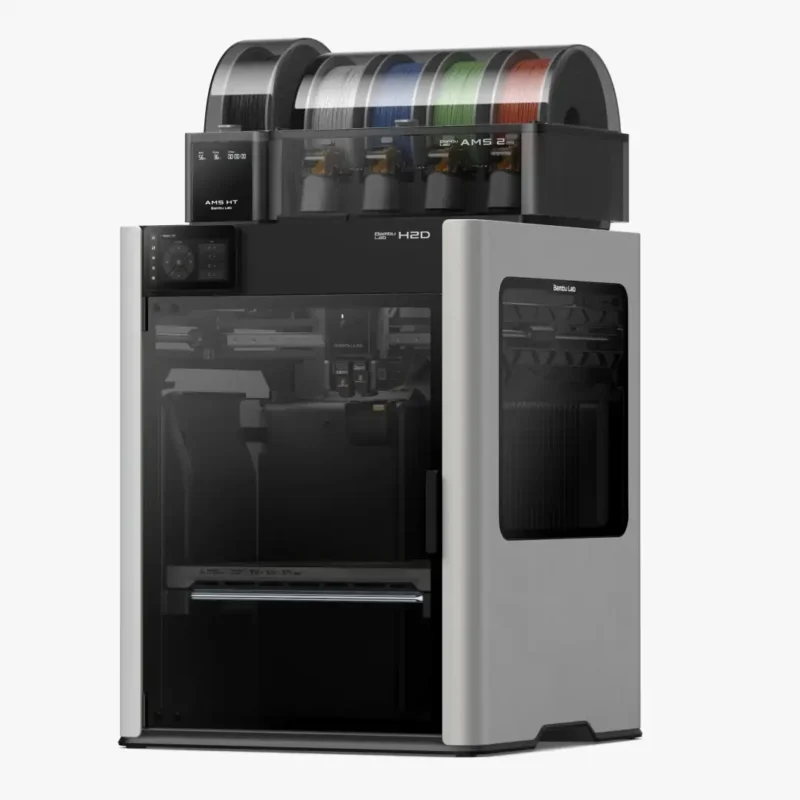

The H2D is the machine that defined the H Series when it launched in March 2025. Its IDEX system — two completely independent direct-drive extruders on separate carriages — lets both nozzles print at the same time. Run a build material in one and soluble PVA support in the other with near-zero purge waste. Add an optional laser module and it becomes a desktop manufacturing unit: print, engrave, cut, and plot without changing machines.
| Build Volume | 350 × 320 × 325mm (single nozzle: 325 × 320 × 325mm) |
| Architecture | Enclosed CoreXY |
| Extruder | Dual IDEX direct drive — independent carriages |
| Max Print Speed | 600mm/s (toolhead capable of 1,000mm/s) |
| Acceleration | 20,000mm/s² |
| Max Nozzle Temp | 350°C (both nozzles) |
| Chamber Heating | 65°C active |
| High-Flow Hotend | 40mm³/s standard, 65mm³/s optional |
| Motion Accuracy | <50μm with Vision Encoder (sold separately) |
| Multi-material | IDEX simultaneous dual-nozzle — near-zero purge waste |
| AMS Compatible | AMS 2 Pro (up to 4 AMS units with adapter) |
| Laser Modules | 10W optional (cuts 5mm plywood/acrylic), 40W optional (heavy cutting) |
| Other Modules | Blade cutting (paper, vinyl, PU leatherette), pen plotting |
| Connectivity | Wi-Fi, LAN |
| Cameras | Bird’s-eye + live view toolhead camera |
| Upgrade Path | Vortek Upgrade Kit available ($799) — converts to H2C tool-changer |
Engineers and prosumers printing ABS, ASA, PA, PC, and carbon-fiber composites who need soluble PVA support capability. Anyone who wants a hybrid print-and-fabricate machine with laser and cutting in one unit. Small businesses with functional part production needs.
Makers who primarily print in one material — the H2S covers that at lower cost and higher speed. High-volume multi-color figure and terrain printing — the H2C Vortek system is far more efficient.

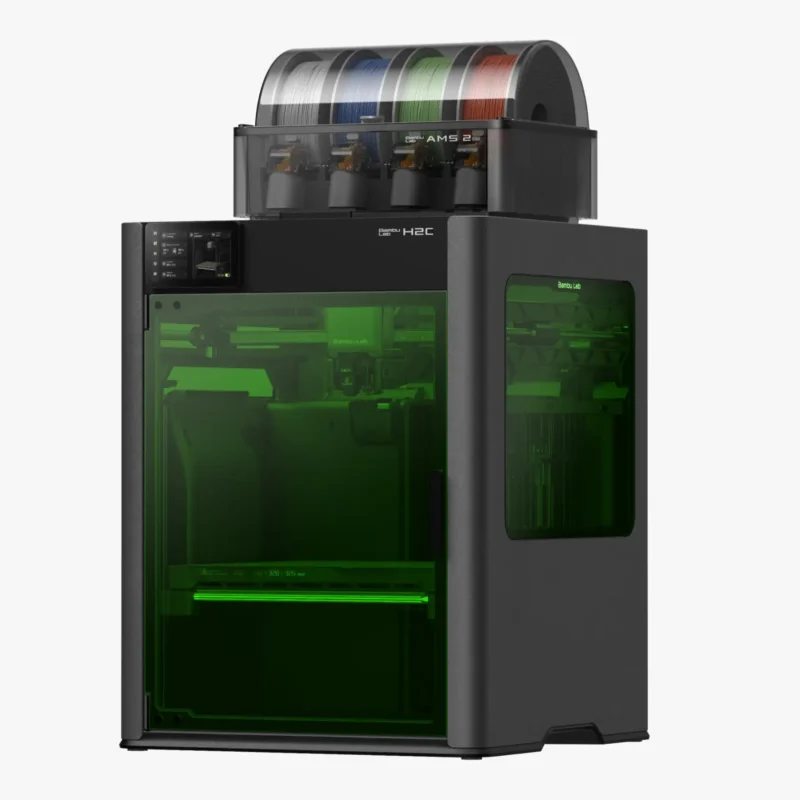

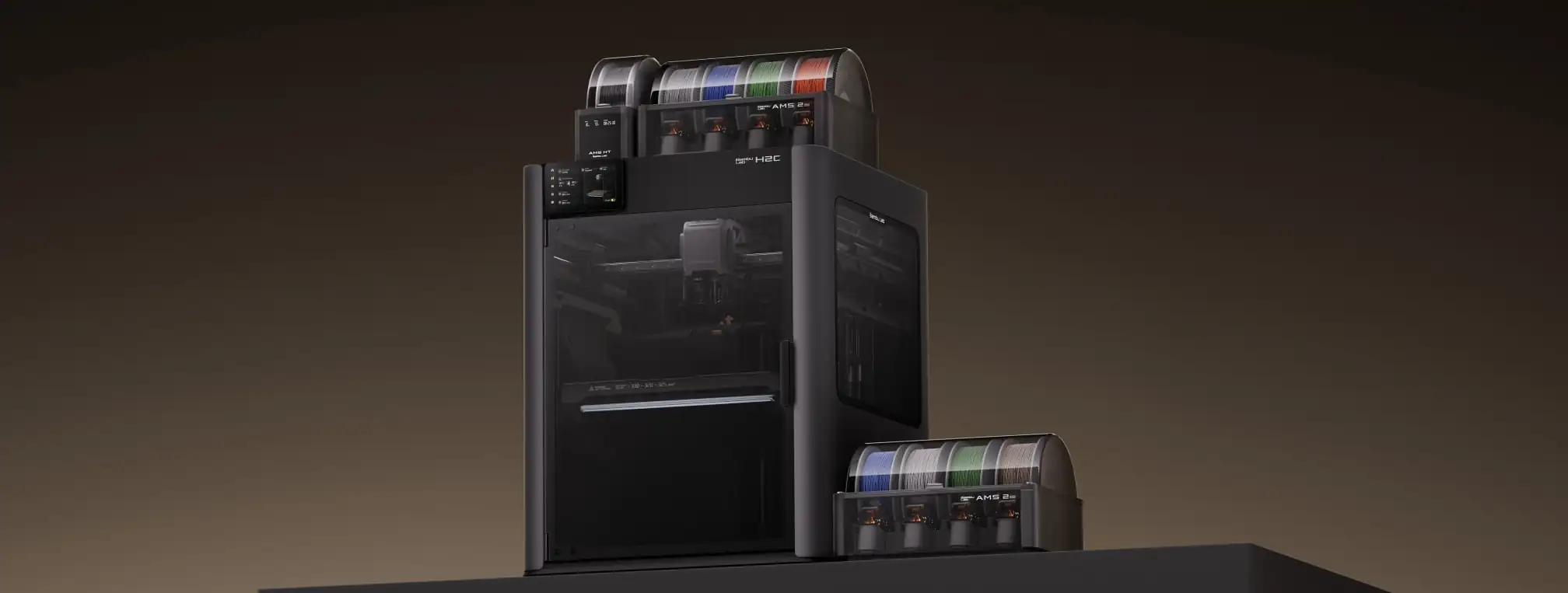

The H2C is the H Series taken to its logical extreme for multi-color and multi-material work. Instead of fixed nozzles, the H2C uses the Vortek system — a tool-changer rack that holds up to 8 induction hotends and swaps between them automatically mid-print. Each hotend is a separate unit that can carry a different material, filament type, or nozzle size. The result is dramatically lower purge waste than any AMS-based system, and the ability to run complex multi-material prints in a single run without operator intervention.
H2D and H2S owners can upgrade to Vortek via a kit, but Bambu recommends purchasing H2C directly if you want the Vortek experience from the start — upgrading later costs more overall.
| Build Volume | 330 × 320 × 325mm (reduced from H2D due to Vortek rack) |
| Architecture | Enclosed CoreXY |
| Extruder | Vortek automatic tool-changer — 8 hotend slots, 7 auto-swap |
| Max Print Speed | 600mm/s |
| Acceleration | 20,000mm/s² |
| Max Nozzle Temp | 350°C |
| Chamber Heating | 65°C active |
| Multi-material | Up to 8 materials — near-zero purge waste via tool swap |
| AMS Compatible | AMS 2 Pro — up to 2 AMS with adapter; Filament Track Switch Module (2026) enables full 7-hotend with 2 AMS |
| Nozzle Mixing | Same-size mixed types supported (e.g. 0.4mm standard + 0.4mm high flow); mixed sizes not yet supported |
| Laser Modules | 10W or 40W optional (Laser Edition); non-laser H2C upgradeable |
| Other Modules | Blade cutting supported by default |
| Buildplate | Not interchangeable with H2D (Vortek rack offsets bed dimensions) |
| Connectivity | Wi-Fi, LAN |
| Upgrade Path | Vortek Upgrade Kit: H2D ($799), H2S ($899) |
| Cameras | Bird’s-eye + live view toolhead camera |
Small businesses, studios, and dedicated makers printing anime figures, cosplay props, tabletop terrain, and architectural models where maximum color variety and minimal filament waste are the priority. The most capable multi-material desktop printer on the market.
Anyone primarily printing in one or two materials — the complexity and cost are overkill. First-time buyers — start with the A or P series and grow into this tier.
| Your situation | Recommended | Why |
|---|---|---|
| Need large build volume and 350°C materials. Print one material at a time or via AMS purge tower. | H2S | Fastest in the series (1,000mm/s). Most affordable H Series entry. |
| Need soluble PVA supports without waste, or want dual-material in a single pass. | H2D | IDEX runs both nozzles simultaneously. Near-zero purge waste on dual-material jobs. |
| Need a fabrication machine that prints, engraves, cuts, and plots. | H2D or H2S | Both support 10W and 40W laser modules plus blade cutting and pen plotting. |
| Printing multi-color figures, terrain, or production models where filament waste is a real cost. | H2C | Vortek tool-changer eliminates purge waste. 8 hotends, 7 auto-swap, minimal dead material. |
| Already own an H2D or H2S and want Vortek capability. | Vortek Upgrade Kit | $799 (H2D) or $899 (H2S). Complex install — Bambu recommends buying H2C new unless already invested in H2D/H2S. |
| Enterprise with enhanced cybersecurity and network compliance requirements. | H2D Pro | Same hardware as H2D with hardened network security. Starts at $3,799+. |
